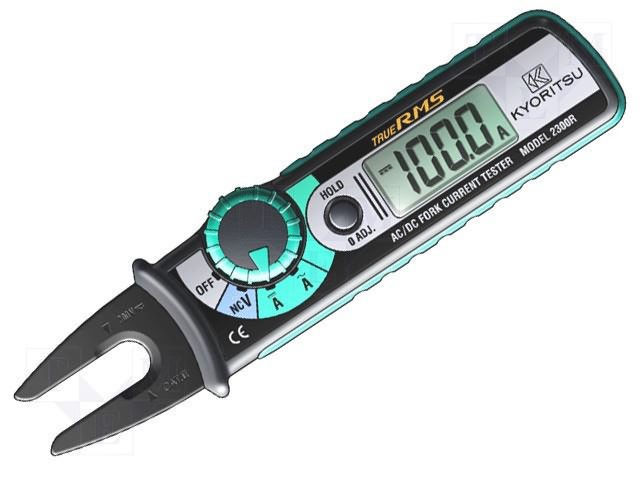

KYORITSU 2300R Clamp Meter (100A)

True RMS

RangeMeasuring RangeAccuracy
Current MeasurementAC A 0 to 100.0A
DC A 0 to ±100.0A
|±2.0%rdg±5dgt (50/60Hz)
|±2.0%rdg±5dgt
Conductor SizeMax Ø10mm
Non Contact VoltageDetect AC voltage
without contacting
with socket wire
During voltage detection,
"Hi" flashes and
a buzzer sounds intermittently
Dimensions161.3(L) × 40.2(W) × 30.3(D)mm
Crest Factor2.5
Weight110g (with batteries)
Maximum Digit1,049
Safety StandardIEC 61010-1 CAT.III 300V Pollution Degree 2
Power SourceR03 (AAA) × 2
AccessoriesCarrying Case
R03 (AAA) × 2
Instruction Manual
