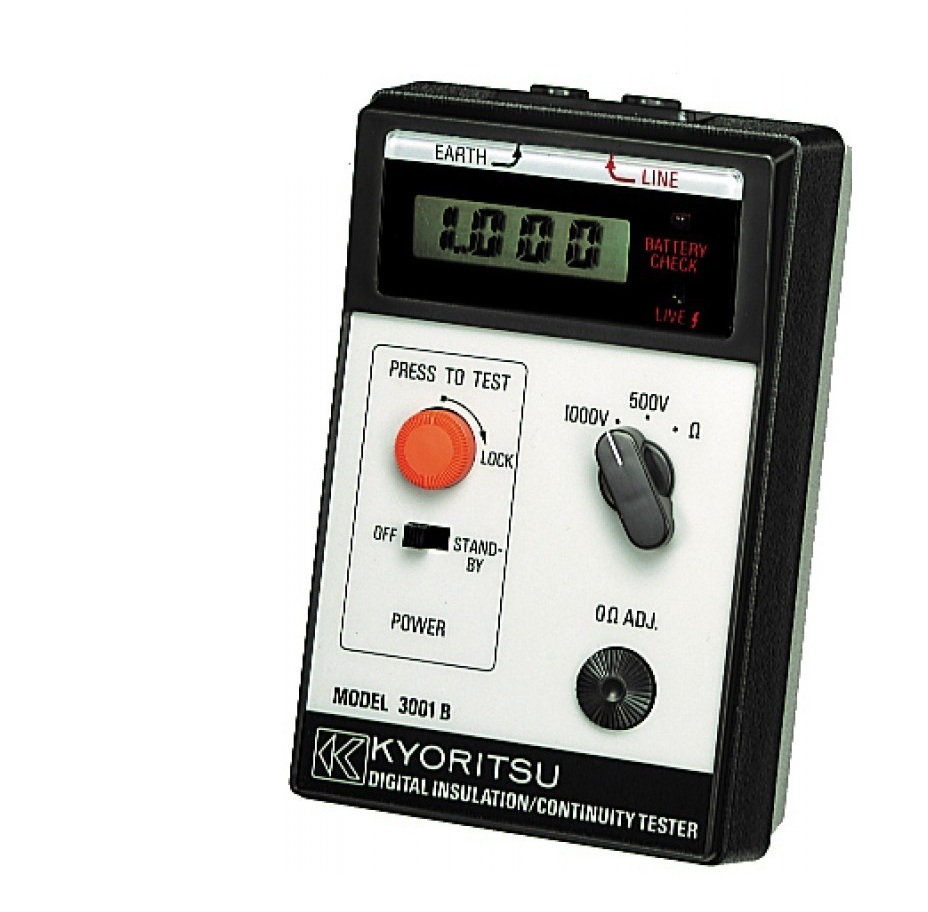

Digital Insulation / Continuity Tester KYORITSU 3001B (1000V/200MΩ)

  • Manufacturer: KYORITSU
    Model: 3001B
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Insulation Resistance
Test Voltage 500V/1000V
Measuring Ranges
(Mid-scale Value)
200MΩ (2/20/200MΩ) autoranging
Output Voltage
on open circuit
Rated test voltage +12%
Rated Current 1~1.1mA DC approx.
Output Short
Circuit Current
1.5mA DC approx.
Accuracy |±2%rdg±1dgt
Continuity Test
Measuring Ranges
(Mid-scale Value)
200Ω (20/200Ω) autoranging
Output Voltage
on open circuit
600mV DC approx.
Output Short
Circuit Current
6mA approx.
Accuracy |±2%rdg±0.1Ω|±1dgt
General
Withstand Voltage 2200V AC for 1 minute
Power Source R6P (AA) (1.5V) × 8
Dimensions 144(L) × 93(W) × 61(D)mm
Weight 460g approx.
Accessories 7025 (Test leads)
Pouch for test leads
9050 (Carrying Case)
R6P (AA) × 8
Instruction Manual

Warranty: 12 months
Manufacturer: Kyoritsu - Japan
Origin: Japan
