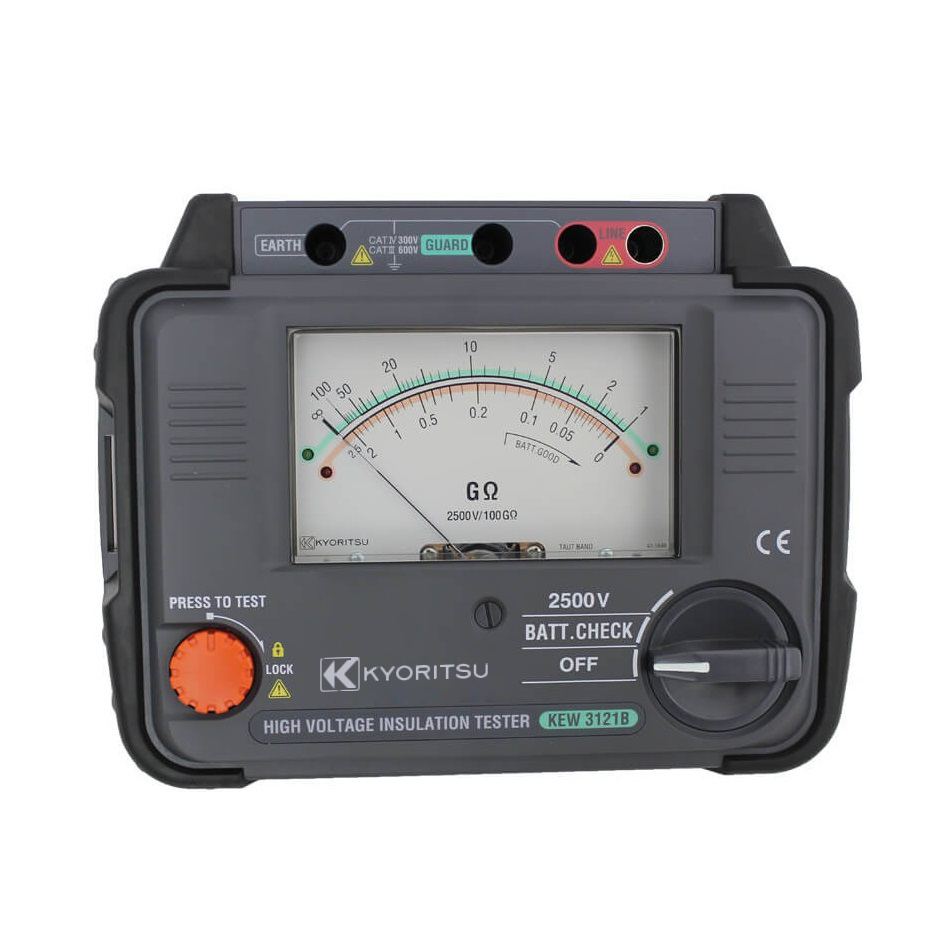

Kyoritsu 3121B High Voltage Insulation Tester

  • Manufacturer: KYORITSU
    Model: 3121B
    Origin: Japan
  • 339.13
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Kyoritsu
Origin: Japan
Model: 3121B
Warranty: 12 months



Test voltage: 2500V

Measuring ranges: 2GΩ/100GΩ (Auto-ranging)

Accuracy:

               0.1 - 50GΩ: ±5%rdg

               0 - 0.1GΩ, 50GΩ - ∞:

               ±10%rdg or 0.5% of scale length

Applicable standards:

IEC 61010-1, 61010-2-030

Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2

Power source:  DC12V : LR14/R14 × 8pcs

Dimensions:    177 (L) × 226 (W) × 100 (D) mm

Weight : 1.6kg approx.

Accessories:

7165A (Line probe: 3m)

7264 (Earth cord: 3m)

7265 (Guard cord: 3m)

8019 (Hook type prod)

9182 (Carrying case[Hard])

LR14 (Alkaline battery size C) × 8

Instruction manual

Datasheet

  Extremely easy and simple operation
Automatic ranges, indicated by individual LED
Newly-designed alligator clip
It comes with a tough hard case
Safety Standard IEC 61010-1 CAT IV 300V /
CAT III 600V

CAT IV 300V CAT III 600V 3121B 2500V 3122B 5000V

3121B
CEAUTO DISCHARGE
(Photo: 3121B)

MODEL 3121B 3122B
Test voltage 2500V 5000V
Measuring ranges 2GΩ/100GΩ (Auto-ranging) 5GΩ/200GΩ (Auto-ranging)
Accuracy 0.1 - 50GΩ: ±5%rdg
0 - 0.1GΩ, 50GΩ - ∞:
±10%rdg or 0.5% of scale length
0.2 - 100GΩ: ±5%rdg
0 - 0.2GΩ, 100GΩ - ∞:
±10%rdg or 0.5% of scale length
Applicable standards IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V
Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
Power source DC12V : LR14/R14 × 8pcs
Dimensions 177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case)
Weight 1.6kg approx. 1.7kg approx.
Accessories 7165A (Line probe: 3m)
7264 (Earth cord: 3m)
7265 (Guard cord: 3m)
8019 (Hook type prod)
9182 (Carrying case[Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
7165A (Line probe: 3m)
7264 (Earth cord: 3m)
7265 (Guard cord: 3m)
8019 (Hook type prod)
9183 (Carrying case[Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
Optional 7168A (Line probe with aligator clip: 3m)
7253 (Longer line probe with alligator clip: 15m)
8302 (Adaptor for recorder)
