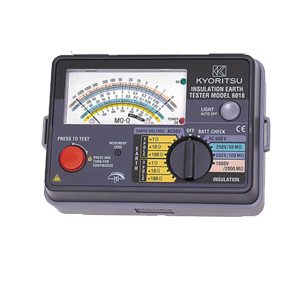

KYORITSU 6018 Multi Function Testers

Manufacturer: KYORITSU
Model: 6018
Contact
- Request a Quotation
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

Instruction + metal
+ Measuring communication circuit, measuring circuit, measuring soil resistivity ...
+ Measuring range: 250V/500V/1000V ;50M/100M/2000 MΩ

Details

•	Designed to meet IEC 61010-1 CAT.III 600V
•	Test leads with remote control switch. (For insulation&Simplified Earth Test)
•	Back light function.
•	Color coded scales and range switch position for easy reading.
•	Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
•	Can be hung around the neck for both hand’s operation.

Insulation Testing
6017 Test Voltage	125V/20MΩ 250V/50MΩ 500V/100MΩ
6018 Test Voltage	250V/50MΩ 500V/100MΩ 1000V/2000MΩ
Accuracy	\|±5%rdg
Earth Resistance
Simplified Precision measurement	12Ω/120Ω/1200Ω
Accuracy	\|±3% of full scale value
AC Voltage
0-600V AC	\|±3% of full scale value
Earth Voltage
0-60V AC	\|±3% of full scale value
General
Safety Standard	IEC 61010-1 CAT.III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557
Withstand Voltage	5550V AC for 1 minute
Power Source	LR6 (1.5V) × 8
Dimensions	130(L) × 183(W) × 100(D)mm
Weight	1000g approx.
Accessories	7103A (Test leads with remote control switch), 7131B (Safety crocodile clip [black]), 7161A (Flat test prod [black]) 8017 (Extension prod), 9092 (Cord case), 9121 (Shoulder strap), Battery LR6 (1.5V) × 8, Instruction Manual
Optional Accessories	7100 (Precision measurement Cord Set)
