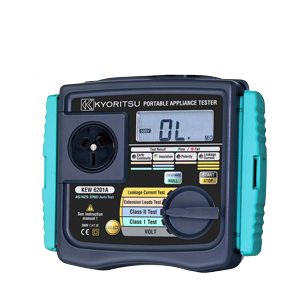

Kyoritsu 6201A Portable Appliance Tester (20Ω, 200MΩ)

  • Manufacturer: KYORITSU
    Model: 6201A
  • 490.83
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Kyoritsu
Model: 6201A
Warranty: 12 month

RPE 20Ω Protective Conductor Resistance Test
- Measuring range: 0 - 15.00Ω
- Resolution of measurement: 10mΩ
- Open circuit voltage: < AC 12V
- Measuring current: 10A AC nominal value
- Accuracy: ±3%rdg±5dgt
RINS 200MΩ Insulation Resistance
- Rating: 250V/20MΩ; 500V/20MΩ
- Measuring range: 0 - 19.99Ω
- Resolution of measurement: 10kΩ
- Output voltage: 250V DC (+20%/-10%) @1MΩ; 500V DC (+20%/-10%) @1MΩ
- Short circuit current: 2.5mA DC or less
- Accuracy: ±2%rdg±3dgt
Leakage Current Test
- Measuring range: AC 0.1 - 19.99mA
- Resolution of measurement: 0.01mA
- Examination time: Max 15 seconds
- Accuracy: ±3%rdg±5dgt
AC VOLT Mains Voltage Check
- Measuring range: 207 - 264V
- Resolution of measurement: 1V
- Accuracy: ±2%rdg±3dgt
- Supply voltage: 240V±10%
- Frequency: 50Hz±1%
- Applicable standards: IEC 61010-1 CAT III 300V Pollution Degree2; IEC 61326-1 (EMC)
- Dimensions: 185 (L) × 167 (W) × 89 (D) mm
- Weight: 1.2kg (only the instrument body)
- Accessories: 7123 (Power cord [AU]); 7129A (Test leads with alligator clip); 7161A (Flat test prod [black]); 7140 (Adapter for exntesion cord); 9147 (Cord case); 9121 (Shoulder strap); Instruction manual
- Optional: 7121B (Distribution board test leads)
