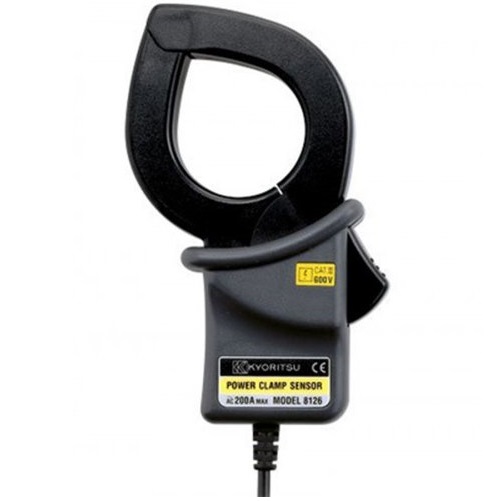

KYORITSU 8126 Load Current Clamp Sensor

Conductor size:Φ40
Rated current: AC 200A
Output voltage: AC 500mV/200A (AC 2.5mV/A)
Accuracy:
|±0.5%rdg±0.1mV (50/60Hz)
|±1.0%rdg±0.2mV (40Hz~1kHz)
Phase Shift: within ±1.0º (45~65Hz)
Withstand voltage: AC 5350V for 5 seconds
Cable length: Approx. 3m
Output connector: MINI DIN 6pin
Operating temperature ranges: 0~50ºC, less than 85% RH (without condensation)
Output impedance: Approx. 5Ω
Dimensions: 128(L) x 81(W) x 36(D) mm
Weight: 260g
Accessories: 9095 (Portable case), Instruction manual, Cable marker
Made in japan
