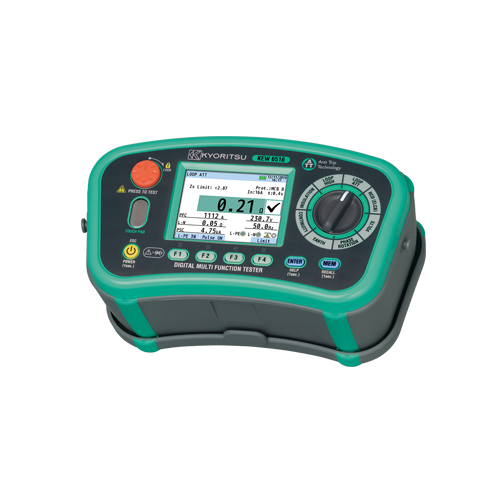

KYORITSU KEW 6516 Multi Function Tester (2000Ω/1000V)

Insulation resistance

Test voltage: 100V/250V/500V/1000V

Measuring ranges:

2.000/20.00/200.0MΩ

(Auto-ranging)

20.00/200.0/1000MΩ

(Auto-ranging)

20.00/200.0/2000MΩ

(Auto-ranging)

Rated current

1.0-1.2mA @0.1MΩ

1.0-1.2mA @0.25MΩ

1.0-1.2mA @0.5MΩ

1.0-1.2mA @1MΩ

Loop impedance

Rated voltage: 48~500V

PSC/PFC

Range: 2000A/20kA

RCD:

Rated voltage: 100-260V(50/60Hz)

Included Accessories

Main test lead x 1

7281 (Test leads with remote control switch)

7246 (Distribution board test lead)

7228A (Earth resistance test leads)

8041 (Auxiliary earth spikes[2 spikes/1 set])

9084 (Soft case)

9142 (Carrying case)

9151 (Shoulder strap)

9199 (Shoulder pad)

8212-USB (USB adaptor with "KEW Report(Software)'')

LR6(AA) × 8, Instruction manual, Calibration certificate
