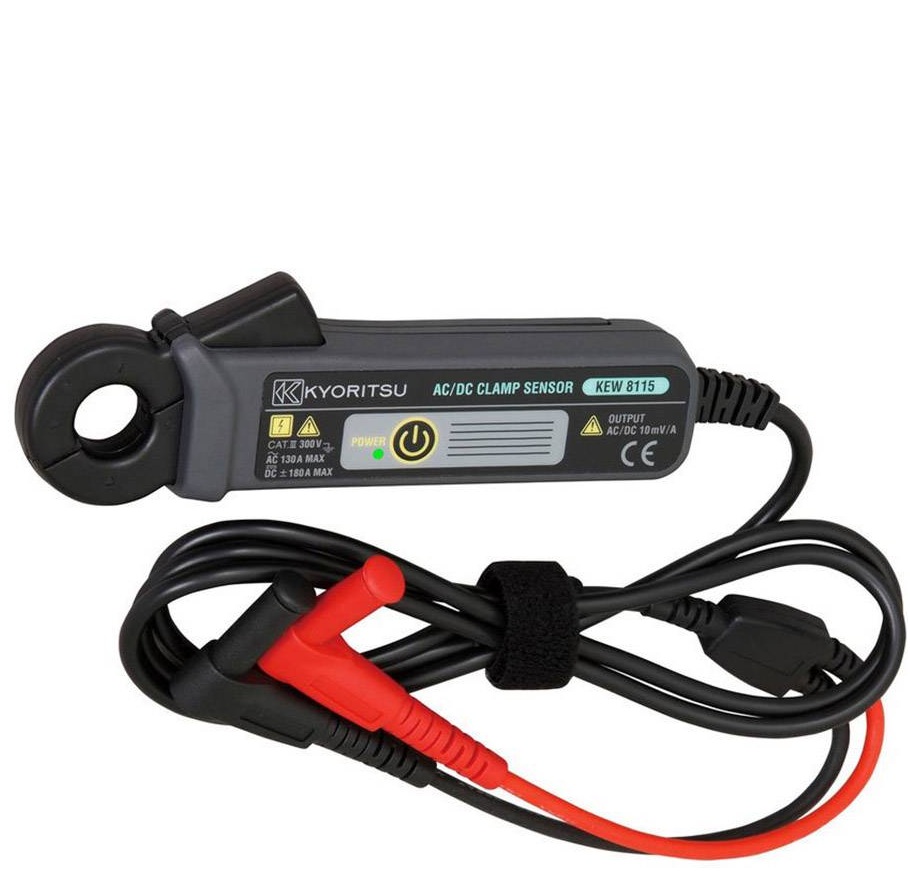

Kyoritsu 8115 AC / DCクランプセンサー（180A）

Measuring range : AC 0.1~130Arms (185Apeak) ; DC 0~±180A
Output voltage : AC 10mV/A ; DC 10mV/A
Accuracy: ±1.2%rdg±0.4mV (50/60Hz); ±2.5%rdg±0.4mV (40~1kHz) ; ±1.2%rdg±0.4mV (*)
Low battery warning     2.2V±0.2V or less - Red LED flash: (1.9V±0.2V - Automatically power off)
Conductor size : Max. Φ12mm
Withstand voltage : AC 3540V (RMS 50/60Hz) for 5 sec.
Operating temperature & humidity range : -10 to 55ºC, relative humidity 85% or less (no condensation)
Output impedance : Approx. 10Ω or less
Applicable standards : IEC 61010-1 CAT.III 300V Pollution degree 2,
IEC 61010-2-032, IEC 61326-1
Power source : DC3V (size AAA alkaline battery LR03×2pcs)
* Continuous use: approx. 40 hours
(Auto power off: approx. 20 minutes)
Cord length : Approx. 1,200mm
Output connector : Φ4mm banana plug
Dimensions : 127(L)×42(W)×22(D) mm
Weight : Approx. 140g
Accessories : Soft case, LR03×2, Instruction manual
