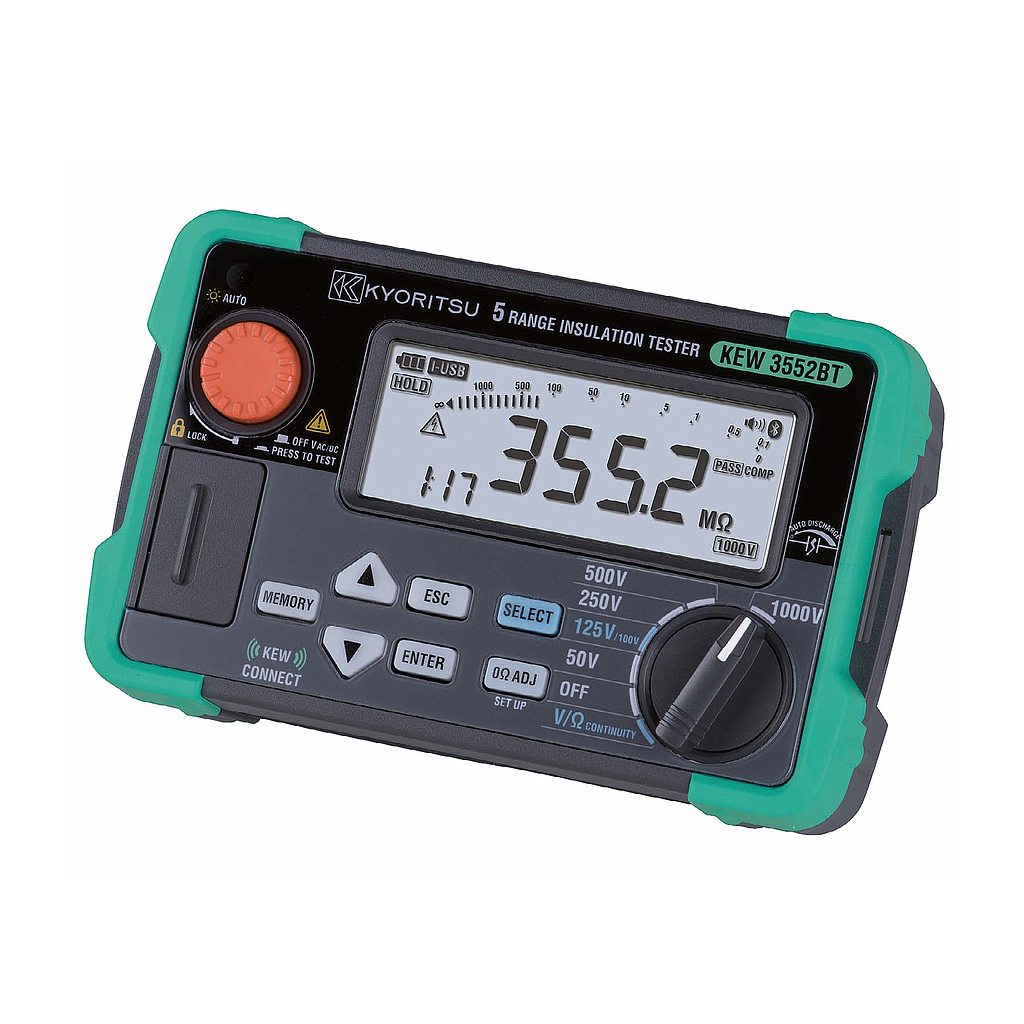

KYORITSU Kew 3552 デジタル断熱材

  • 生産者:KYORITSU
    Model: Kew 3552
    起源: Japan
    品物を保証します: 12 Month
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Test voltage : 50V/100V/125V/250V/500V/1000V

Measuring range (Auto range) :

  100.0MΩ(50V)

  200.0MΩ(100V)

  250.0MΩ(125V)

  500.0MΩ(250V)

  20.00GΩ(500V)

  40.00GΩ(1000V)


Mid-scale value

  2MΩ(50V)

  5MΩ(100V/125V)

  10MΩ(250V)

  100MΩ(500V)

  200MΩ(1000V)


First effective measuring range :

  0.100 ~ 10.00MΩ(50V)

  0.100 ~ 20.00MΩ(100V)

  0.100 ~ 25.00MΩ(125V)

  0.100 ~ 50.0MΩ(250V)

  0.100 ~ 500MΩ(500V)

  0.100 ~ 1000MΩ(1000V)

Accuracy : ±2%rdg ±2dgt


Second effective measuring ranges :

  0.050 ~ 0.099MΩ(50V/100V/125V/250V/500V/1000V)

  10.01 ~ 100.0MΩ(50V)

  20.01 ~ 200.0MΩ(100V)

  25.01 ~ 250.0MΩ(125V)

  50.1 ~ 500MΩ(250V)

  501 ~ 2000MΩ(500V)

  1001 ~ 4000MΩ(1000V)

Accuracy : ±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)

Rated current: 1.0 ~ 1.1mA

Output short circuit current : 1.5mA max

Ω / Continuty :

  Auto range : 40.00/400.0/4000Ω

  Accuracy   : ±2.5%rdg ±8dgt

  Output voltage on open circuit : 5V(4~6.9V)

  Output short circuit current   : 200mA max

Voltage :

  Voltage range AC 2.0~600V(45~65Hz)

  DC -2.0~-600V +2.0~+600V

Accuracy : ±1%rdg ±4dgt


General :

Applicable standards : IEC61010 CATⅢ 600V/CAT IV 300V

                                        IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529(IP40)

Power source : LR6/R6(AA)(1.5V)x4

Communication interface : USB

Dimensions / Weight  : 97(L) x 156(W) x 46(D) mm / 490g approx(including battery)

Included Accessories : 7260(Test leads with remote control switch)

                       7261A(Test leads with alligator clip)

                       8017A(Extension prod long)

                       9173(Carrying case)

                       9121(Shoulder strap)

                       LR6(AA)(1.5V)x4

                       Instruction manual


Optional Accessories : 7243A(L-shaped probe)

                       8016(Hook type prod)

                       8212-USB(USB adaptor with "KEW Report (software)" )
