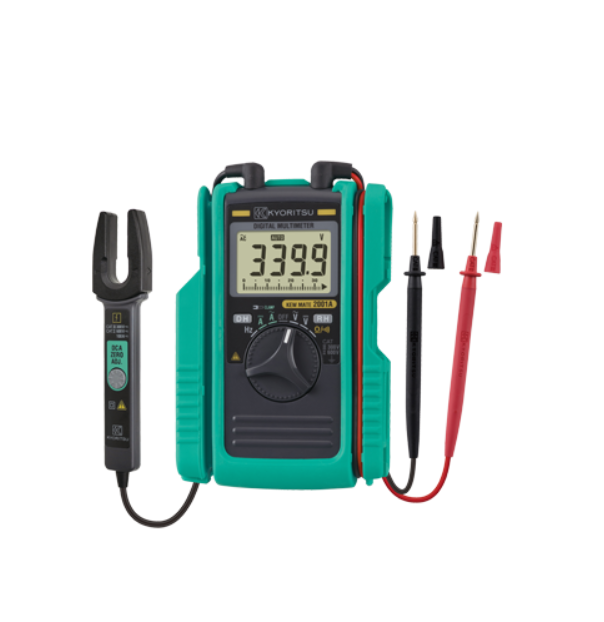

KYORITSU 2001A KEWMATE Digital Multimeter (with AC/DC Clamp Sensor)

  • 생산업체: KYORITSU
    Model: 2001A
    출처: Thailand
    보증: 12 month
    • 견적요구 견적요구
  • 2,240,000 VND
  • 재고수량: 8
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Measuring Range:

DC V: 340.0mV/3.400/34.00/340.0/600V (Input Impedance: 10MΩ)

±1.5%rdg±4dgt

AC V: 3.400/34.00/340.0/600V (Input Impedance: 10MΩ)

±1.5%rdg±5dgt [50 - 400Hz]

DC A: 100.0A ±2%rdg±5dgt

AC A: 100.0A ±2%rdg±5dgt (50/60Hz)

Ω: 340.0Ω/3.400/34.00/340.0kΩ/3.400/34.00MΩ

±1%rdg±3dgt (0 - 340kΩ)

±5%rdg±5dgt (3.4MΩ)

±15%rdg±5dgt (34MΩ)

Continuity buzzer: Buzzer sounds below 30±10Ω

(Continuity buzzer works on 340Ω range only)

Frequency:

(AC A) 3.400/10.00kHz ±0.1%rdg±1dgt

(AC V) 3.400/34.00/300.0kHz ±0.1%rdg±1dgt

(Input sensitivity Current: more than 25A, Voltage: more than 30V)

Conductor size: Ø10mm max.

Applicable standards: IEC 61010-1 CAT III 300V, CAT II 600V

Pollution degree 2

IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)

Power source: R03 (AAA)(1.5V) × 2

* Continuous measuring time: approx. 45 hours

(Auto power save: approx. 10 minutes)

Dimensions: 128(L) × 87(W) × 24(D)mm

Weight: 220g approx. (including batteries)

Included Accessories: R03 (AAA) × 2, Instruction Manual

Optional Accessories: 9107 (Carrying case [Soft])
