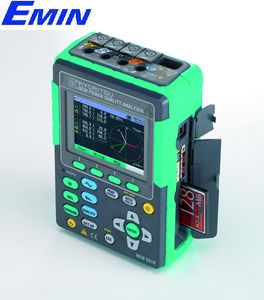

Kyoritsu 6310-00, K6310-00 전력 품질 분석기

+ Wiring connections : 1P 2W, 1P 3W, 3P 3W, 3P 4W
+ Voltage : 150 / 300 / 600 /1000V
+ Current : Max 3000A
+ Frequency meter range 40~70Hz

Details
Can measure Flicker in accordance to IEC 61000-4-15 and EN50160 standards. Using our Flicker sensor, available as optional accessory, Pst value (short term severity in 10 minutes value) and the Plt value (long term severity in 2 hours value) can be measured.
12 kinds of Power Measurements for Power Control and Applicable to Power Quality Control including Harmonics Analysis.
One click easy-to-use operation helps complicated setting and processing of large data through the setting / analyzing software provided as accessory.
Direct communication with PC via USB cable
6310
CE
Built-in Input / Output Function of external signal enables the signal transmission to alarms.
2-way power supply by AC and Battery, and Nickel hydrogen battery usable with rechargeable function.
Pull / Insert of CF card possible whenever on recording under the function of memory backup device.
Can monitor insulation at leakage current by using optional leak clamp sensors.
Built-in Print Screen Function enables to record display screen
(Records 512 screens by using CF card: 1 screen 40KB).
Can display Waveform and Vector, and can confirm the wiring connection, too.
Complies fully with International Safety Standards IEC 61010-1 CAT.III 600V.
* Attention for KEW6310 customers:

Flicker measurements are possible with firmware of KEW6310 upgrade (Ver.2.01), PC software PQA Master upgrade (Ver. 2.01) and an optional accessory Flicker sensor KEW8325F.

TRUE RMS
Wiring connections 1P 2W, 1P 3W, 3P 3W, 3P 4W
Measurements and parameters Voltage, Current, Frequency, Active power, Reactive power,
Apparent power, Active energy, Reactive energy, Apparent energy,
Power factor (cos θ), Neutral current, Demand, Harmonics,
Quality (Swell/Dip/Instantaneous Stop, Transients/Over Voltage, Inrush Current, Unbalance Rate, IEC Flicker [Pst(1 min)*, Pst, Plt]), Phase Advance Condenser

(*Pst can be shown in details for 1 minute intervals.)
Other functions Digital output function, External communication function,
Scaling function
Voltage :
Ranges [RMS] 150 / 300 / 600 /1000V (CF: 2.5 or less, 100% or less of each range)
Allowable input 10~110% of each range (1000V range : 20%~)
Display ranges 5~120% of each range
Accuracy |±0.3%rdg±0.2%f.s. (sine wave, 45~65Hz)
Current :
Ranges [RMS]
8128 ( 50A  type ) : 1 / 5 / 10 / 20 / 50A
8127 ( 100A  type ) : 10 / 20 / 50 / 100A
8126 ( 200A  type ) : 20 / 50 / 100 / 200A
8125 ( 500A  type ) : 50 / 100 / 200 / 500A
8124 ( 1000A  type ) : 100 / 200 / 500 / 1000A
8129 ( 3000A  type ) : 300 / 1000 / 3000A
(CF:3.0 or less. 90% or less of each range)
Allowable input <img wid
