Kiểm tra điện áp:
- Dải điện áp:12 ~ 690V AC/DC
- LED
+ Điện áp định mức:12/24/50/120/230/400/690V, AC (16 ~ 400Hz), DC (±)
+ Các chế độ đèn báo hiệu:7 ± 3V (12V LED); 18 ± 3V (24V LED); 18 ± 3V (24V LED); 75% ± 5% điện áp danh định (120/230/400/690V LED)
+ Thời gian phản hồi: <0.6s
- LCD
+ Dải đo/ độ phân giải (dải tự động): 300V AC/DC (6.0 - 299.9)/0.1V; 690V AC (270 - 759)/1V; 690V DC (270 - 710)/1V
+ Độ chính xác (23±5ºC): ±1.5V (7 - 100V); ±1%±5dgt (100 - 690V); AC (16 - 400Hz), DC(±)
+ Thời gian đáp ứng: 1s
- Dòng đỉnh: ls <3.5ma t="" i="" 690v="" br=""> Kiểm tra cực đơn pha:
- Dải điện áp: 100 ~ 690V AC (50/60Hz)
Kiểm tra góc pha:
- Hệ thống:Ba pha 4 dây hệ thống 200 ~ 690V pha-pha AC (50/60Hz)
- Dải góc pha: 120 ± 5 độ
Kiểm tra liên tục:
- Dải đo: 0 ~ 400kΩ 50%
- Dòng kiểm tra: Xấp xỉ 1.5μA (pin 3V, 0Ω)
Thông số chung:
- Nguồn:LR03 (AAA) 1.5V × 2
- Kích thước: 246(L)×64(W)×26(D) mm, 190g
- Phụ kiện: LR03 (AAA) 1.5V×2, KTA01, KTA02 , tài liệu hướng dẫn
Chi tiết
Manual
| • |

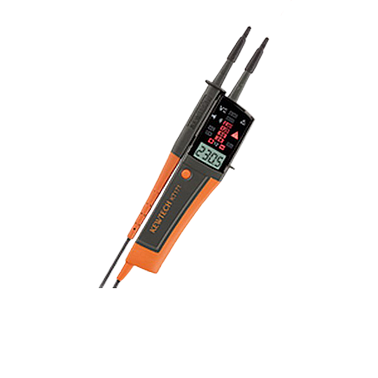

AC and DC voltage tests up to 690V with LEDs and LCD |
| • |
Comply with the latest standards IEC 61243 and IEC 61010 |
| • |
Novel design
Large and bright LEDs: Values are visible in the dark place
Ergonomic design fits in the hand |
| • |
Two functions are available in one model
"Measurement without battery" and "Self Test (all LED on)" |
| • |
Test leads withstand harsh environments at low temperature |
| • |
Penlight (white LED) |
| • |
Auto-power ON/OFF |
| • |
Audible indication |
| • |
Variable test tips, φ2mm or φ4mm |
| • |
Probe protection cover can store the attachment of caps |
| • |
IP65 (IEC 60529) |
|
|
|
| |
 |
|
|
|
 Voltage Test (Double-pole Test) |
|
Single-pole Phase Test |
| |
 |
|
 |
|
|
|
|
|
|
| Variable top tips |
|
Store the attachment of caps |
 |
|
 |
|
|
|
|
|
|
| Probe Protection Cover |
|
4mm Tips Replacement |
| |
 |
|
How to fixing 4mm Tips on L1 probe- and L2 probe+.
 |
|
|
|
| Voltage Test |
| Voltage Range |
12 - 690V AC/DC |
| LED |
Nominal Voltage |
12/24/50/120/230/400/690V
AC (16 - 400Hz), DC (±) |
Tolerance
(Threshold Voltage) |
| Light on at more than: |
|
7±3V (12V LED) |
|
18±3V (24V LED) |
|
37.5±4V (50V LED) |
|
75%±5% of nominal voltage |
|
(120/230/400/690V LED) |
|
| Response Time |
<0.6s at="" 100="" of="" each="" nominal="" voltage="" td=""> |
| LCD |
Range/Resolution
(Auto-range) |
300V AC/DC (6.0 - 299.9)/0.1V
690V AC (270 - 759)/1V
690V DC (270 - 710)/1V |
| Accuracy (23±5ºC) |
±1.5V (7 - 100V)
±1%±5dgt (100 - 690V)
AC (16 - 400Hz), DC(±) |
| Over limit Indication |
"OL" |
| Response Time |
Approx. 1s at 90% - 110% of each voltage |
| Peak Current |
ls<3.5ma at="" 690v="" td=""> |
| Measurement Duty |
30s ON (operation time)
240s OFF (recovery time) |
| Single-pole Phase Test |
| Voltage Range |
100 - 690V AC (50/60Hz) |
| Phase Rotation Test |
| System |
Three-phase 4-wire system
200 - 690V phase-to-phase AC (50/60Hz) |
| Phase Range |
120±5 degree |
| Continuity Test |
| Detection Range |
0 - 400kΩ+50% |
| Test Current |
Approx. 1.5μA (battery 3V, 0Ω) |
| General |
| Operating temperature and humidity ranges |
-15 - 55ºC, max 85% RH (No Condensation) |
| Storage temperature and humidity ranges |
-20 - 60ºC, max 85% RH (No Condensation) |
| Applicable Standards |
IEC 61243-3, IEC 61010-1, IEC 61010-031, IEC 61557-7
CAT Ⅲ 690V / CAT Ⅳ 600V Pollution degree 2 |
| IP Rating |
IP65 (IEC 60529) |
| Power Source |
LR03 (AAA) 1.5V×2 |
| Dimensions |
246(L)×64(W)×26(D) mm |
| Weight |
190g (including batteries) |
| Accessories |
LR03 (AAA) 1.5V×2, KTA01 (4mm metal tips [2pcs/set]),
KTA02 (4mm rubber caps [2pcs/set]), Instruction manual |
|
|
