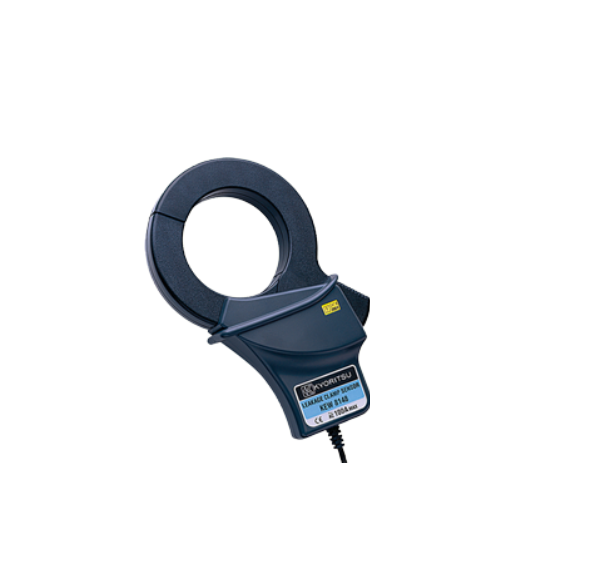

KYORITSU 8148 钳形传感器(Ø68mm)

  • 制造商: KYORITSU
    Model: 8148
    来源: Japan
    • 报价要求 报价要求
  • 5,160,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Conductor size: Ø68mm

Rated current: AC 100A

Output voltage: AC 5000mV/100A (AC 50mV/A)

Accuracy:

0 - 80A

±1.0%rdg±0.1mV (50/60Hz)

±2.0%rdg±0.2mV (40Hz - 1kHz)

80 - 100A

±5.0%rdg (50/60Hz)

±10.0%rdg (45Hz - 1kHz)

Cable length: Approx. 2m

Output connector: MINI DIN 6pin

Output impedance: Approx. 60Ω

Applicable standards: IEC 61010-1:2001,

IEC 61010-2-032:2002,

CAT III 300V pollution degree 2

Operating temperature & humidity range: 0 - 50ºC, less than 85% RH (without condensation)

Dimensions: 100(L) x 60(W) x 26(D) mm

Weight: Approx.150g

Included Accessories: 9095 (Portable case), Instruction manual, Cable marker

Optional Accessories: 7146 (Banana Ø4 adjuster plug), 7185 (Extension Cable)

Details

Datasheet


Manual
