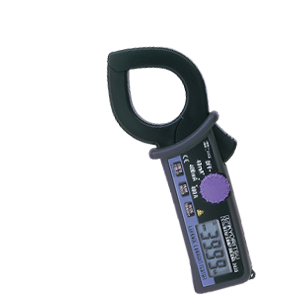

KYORITSU 2433 Leakage Clamp Meter (40/400mA/400A)
Manufacturer: KYORITSU Model: 2433 Origin: Japan - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
| AC A (50/60Hz) | 40/400mA/400A |±1%rdg±5dgt (40/400mA) |±1%rdg±5dgt (0~350A) |±2%rdg (350.1~399.9A) |
| AC A (WIDE) | 40/400mA/400A |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [20Hz~1kHz] (40/400mA) |±1%rdg±5dgt [50/60Hz], |±2.5%rdg±10dgt [40Hz~1kHz] (0~350A) |±2%rdg [50/60Hz], |±5%rdg [40Hz~1kHz] (350.1~399.9A) |
| Frequency Response | 20Hz~1kHz (40Hz~1kHz:400A) |
| Maximum Circuit Voltage | 600V AC/DC (between line/neutral) 300V AC/DC (against earth) |
| Conductor Size | Ø40mm max. |
| Safety Standard | IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-032 |
| Effect of External Stray Magnetic Field | 10mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC |
| Withstand Voltage | 3700V AC for 1 minute |
| Response Time | Approx. 2 seconds |
| Power Source | Two R03 or equivalent (DC1.5V) batteries |
| Dimensions | 185(L) × 81(W) × 32(D)mm |
| Weight | 270g approx. |
| Accessories | 9052 (Carrying Case) R03 (1.5V) × 2 Instruction Manual |
| Optional | 8008 (Multi-Tran)* |
