KYORITSU 3025A High Voltage Insulation Tester

Test voltage: 250V/500V/1000V/2500V
Range: 100.0MΩ/1000MΩ/2.00GΩ/100.0GΩ
Accuracy: ± 5% rdg | ± 3dgt
Short circuit current: 1.5mA
Measure voltage AC / DC: 30 ~ 600V
Accuracy: ±2%rdg±3dgt
Source: DC12V : LR14/R14 × 8pcs
Size: 177 (L) × 226 (W) × 100 (D) mm
Weight: 1.9kg
Accessories:
+ 7165A (measured Que Line)
+ 7264A (Que measure Earth)
+ 7265A (measured Que Guard)
+ 8019 (Hook type prod)
+ 9180 (Carrying Case)
+ LR14 × 8pcs (Pin)
+ Guide

Details

Datasheet

manual



 Insulation Resistance up to 1TΩ (KEW 3125A)
•Short-Circuit Current up to 1.5mA
•Wide Test Voltage from 250V to 5000V (KEW 3125A)
•Diagnosis Function of PI and DAR
•Newly-designed alligator clip
•It comes with a tough hard case
•Filter function reduces noise interference for obtaining stable measurement
•Large display with Bar Graph indication and backlight
•Live voltage warning
•Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

CAT IV 300VCAT III 600VDC AC VBacklightAUTO POWER OFF
3025A 250V/500V/1000V/2500V3125A 250V/500V/1000V/2500V/5000V

3125A
CEAUTO DISCHARGE

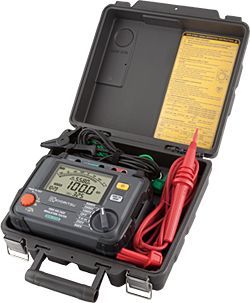

(Photo: 3125A)
Insulation resistance
Rated voltage250V500V1000V2500V5000V (*)
Accuracy
0.0-100.0MΩ
0.0-99.9MΩ
80-1000MΩ
0.0-99.9MΩ
80-999MΩ
0.80-2.00GΩ
0.0-99.9MΩ
80-999MΩ
0.80-9.99GΩ
8.0-100.0GΩ
0.0-99.9MΩ
80-999MΩ
0.80-9.99GΩ
8.0-99.9GΩ
80-1000GΩ
±5%rdg±3dgt±5%rdg±3dgt±5%rdg±3dgt±5%rdg±3dgt±5%rdg±3dgt

±20%rdg (100GΩ or more)

Short circuit current1.5mA
Output voltageAccuracy±10%-10 - +20%0 - +20%
Monitor±10%rdg±20V
Voltage measurement
Measuring rangeAC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Accuracy±2%rdg±3dgt
General
Power sourceDC12V : LR14/R14 × 8pcs
