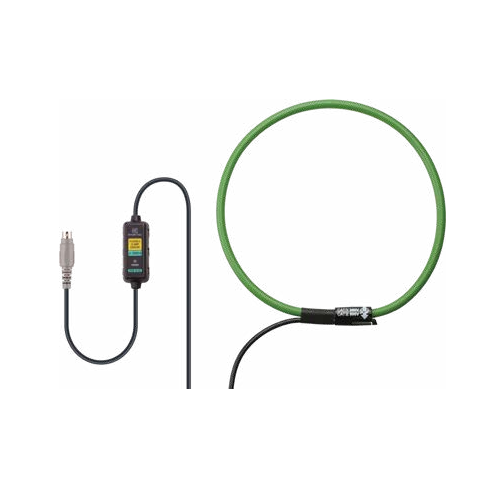

KYORITSU 8133 KEW Flexible Clamp Sensor (Ø170mm, 3000A)

Applicable model: 6305, 6315

Conductor size: max.Ø170mm

Rated current: AC 3000A

Output voltage: AC 500mV / 3000A (AC 0.167mV/A)

Accuracy:

±1.0%rdg±0.5mV (45Hz - 65Hz)

±1.5%rdg±0.5mV (40Hz - 1kHz)

Phase shift: within ±2.0° (45Hz - 65Hz)

within ±3.0° (40Hz - 1kHz)

Cable length: Approx. 3m

Output connector: MINI DIN 6PIN

Output impedance: 100Ω or less

Applicable standards: IEC 61010-1,

IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,

IEC 61326

Operating temperature & humidity range: -10 - 50°C, relative humidity 85% or less (no condensation)

Weight: Approx. 200g

Included Accessories: Instruction manual, Cable marker, 9095 (Carrying case)
