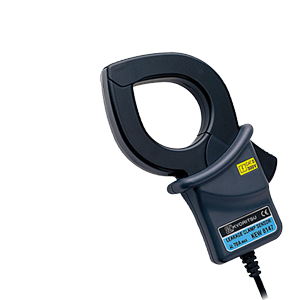

Kyoritsu 8147 Leakage & Load current clamp sensors

Conductor size Ø40mm
Rated current AC 70A
Output voltage AC 3500mV/70A (AC 50mV/A)
Accuracy 0 - 40A
±1.0%rdg±0.1mV (50/60Hz)
±2.0%rdg±0.2mV (40Hz - 1kHz)

40 - 70A
±5.0%rdg (50/60Hz)
±10.0%rdg (45Hz - 1kHz)
Cable length Approx. 2m
Output connector MINI DIN 6pin
Output impedance Approx. 100Ω
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002,
CAT III 300V pollution degree 2
Operating temperature & humidity range 0 - 50ºC, less than 85% RH (without condensation)
Dimensions 128(L) x 81(W) x 36(D) mm
Weight Approx.240g
Included Accessories 9095 (Portable case), Instruction manual, Cable marker
Optional Accessories 7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)
