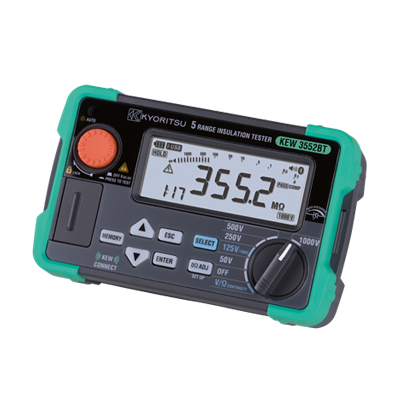

KYORITSU 3552BT 数字绝缘电阻测试仪 (100.0MΩ - 40.00GΩ)

Insulation resistance

Measuring range (Auto range): 100.0MΩ (50V) - 40.00GΩ (1000V)

Accuracy: ±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)

Rated current: 1.0 ~ 1.1mA

Output short circuit current: 1.5mA max

Ω / Continuty

Auto range: 40.00/400.0/4000Ω

Accuracy: ±2.5%rdg ±8dgt

Output voltage on open circuit: 5V (4~6.9V)

Output short circuit current: 200mA max

Voltage

Voltage range: AC 2.0~600V (45~65Hz)　

DC -2.0~-600V +2.0~+600V

Accuracy: ±1%rdg ±4dgt

General

Applicable standards:

IEC61010 CATⅢ 600V/CAT IV 300V

IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529 (IP40)

Power source: LR6/R6 (AA) (1.5V)x4

Communication interface: USB , Bluetooth®4.0

Dimensions / Weight: 97(L) x 156(W) x 46(D) mm / 490g approx (including battery)

Included Accessories:

- 7260 (Test leads with remote control switch)

- 7261A (Test leads with alligator clip)

- 8017A (Extension prod long)

- 9173 (Carrying case)

- 9121 (Shoulder strap)

- LR6 (AA) (1.5V)x4

- Instruction manual

Optional Accessories:

- 7243A (L-shaped probe)

- 8016 (Hook type prod)

- 9186A (Carrying case)

- 9187 (Cord case)

- 8212-USB (USB adaptor with "KEW Report (software)" )
